Show AllA DatadiagramML file is an XML (Extensible Markup Language) document that contains all the components of a Microsoft Office Visio binary file. Much as you can access a Visio document by using Automation or from the ShapeSheet window, you can use XML and supporting tools to access data in a DatadiagramML file.
Note In previously published materials, including the Microsoft Office Visio 2003 SDK, the XML schema that is explained in this document was referred to as "XML for Visio." From now on, the schema will be known as DatadiagramML.
XML (Extensible Markup Language) is the universal format for structured documents and data on the Web.
Just as HTML (Hypertext Markup Language) provides a way to display information on different hardware and software platforms by creating a standard set of fixed, non-customizable tags that a browser interprets and displays, XML provides a way to create documents with custom tags that allows the separation of document content from content presentation.
Documents called schemas define valid tags and their containment relationships. The schema is used to verify that the XML document complies with the content model and structure dictated by the schema.
Because XML is simply text, you can use text-processing software to access the data. And because the definition follows standard rules, there are generic parsers that allow access to the internal data. As industry increasingly accepts XML as a standard (supported by W3C, the World Wide Web Consortium, www.w3c.org), XML is increasingly supported by a broad range of software platforms.
Beginning with Microsoft Visio 2002, support was added for an XML file format that contains the same data as the Visio binary files.
For developers who use the Visio object model or program cells in the ShapeSheet window, the data structures will seem familiar. Most elements that define the data in the DatadiagramML file are named with the same or similar names to the cells in the ShapeSheet or the properties exposed in the object model. Because the document adheres to the XML format standard, you can use standard XSL (Extensible Stylesheet Language) or XSLT (XSL Transformations) languages for retrieving data from XML files.

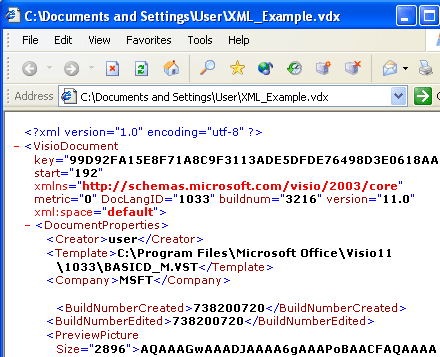

The following example shows the beginning statements from a DatadiagramML file, opened in Microsoft Internet Explorer.
DatadiagramML statements
The first line in the XML file is a processing instruction that identifies the file as an XML file.
The second line contains the opening tag for the top-level DatadiagramML container, the VisioDocument element. This element is described in more detail in the section "DatadiagramML schema."
The following lines contain several attributes of the VisioDocument element, including two, key and start, which Visio uses to verify that the VDX document has not been modified outside of Visio since the last time it was saved in Visio. These attributes take the place of the <?integrity ?> processing-instruction tag that served the same purpose in Visio 2002.
For documents that you create outside of Visio, it is best to omit the key and start attributes in order to improve performance. If the key and start attributes are present, Visio will do a full test of the contents of the file. For documents created outside of Visio, this test will produce the same results, regardless of whether the key and start attributes are present.
For details about validating XML files against the DatadiagramML schema, see Loading Files that were Created or Edited Outside of Visio.
Also notice the required xmlns attribute in the VisioDocument element. Every VDX document created in Microsoft Office Visio 2003 must have a namespace declaration of "http://schemas.microsoft.com/visio/2003/core". If there is no namespace declaration, or if the namespace declaration matches that used in Microsoft Visio 2002, Microsoft Office Visio 2003 will assume the VDX file contains a Microsoft Visio 2002 document and convert the document to the file format of the previous version before loading it.
Following are the three extensions for DatadiagramML files:
Files in .vdx, .vtx, or .vsx format are designed to be peers of the Visio document binary formats
You can use Automation interface calls to manage an XML file that is open in Visio (for example, you can open, save, export, or import DatadiagramML files).
Note You can use Automation calls to manipulate objects in a DatadiagramML document only while it is open in Visio. To retain changes you make by using Automation, you must save the document before closing it.
Visio provides an XML vocabulary or schema that is the set of XML tags that define a Visio document's data elements and attributes and their containment relationships. Developers can refer to the schema to see how to access the data within the Visio for XML document structure.
The XML statements that follow show the top-level container, VisioDocument. This contains the DocumentProperties container, which in turn contains Creator, Template, Company, and other elements.
<VisioDocument
...>
<DocumentProperties>
<Creator>user</Creator>
<Template>C:\Program Files\Microsoft Office\Visio11\1033\BASICD_M.VST</Template>
<Company>MSFT</Company>
...For more information about the DatadiagramML hierarchical tag structure, see About the DatadiagramML Schema. For a representation of the schema itself, see DatadiagramML Schema. You can also download the DatadiagramML schema from the Microsoft Office Developer Center on MSDN, the Microsoft Developer Network.
Because DatadiagramML is a text-based format, you can take advantage of all the text-based tools available for document management. Any text utilities for archiving, differencing, searching, indexing, or versioning can be used to process your DatadiagramML files. You can:

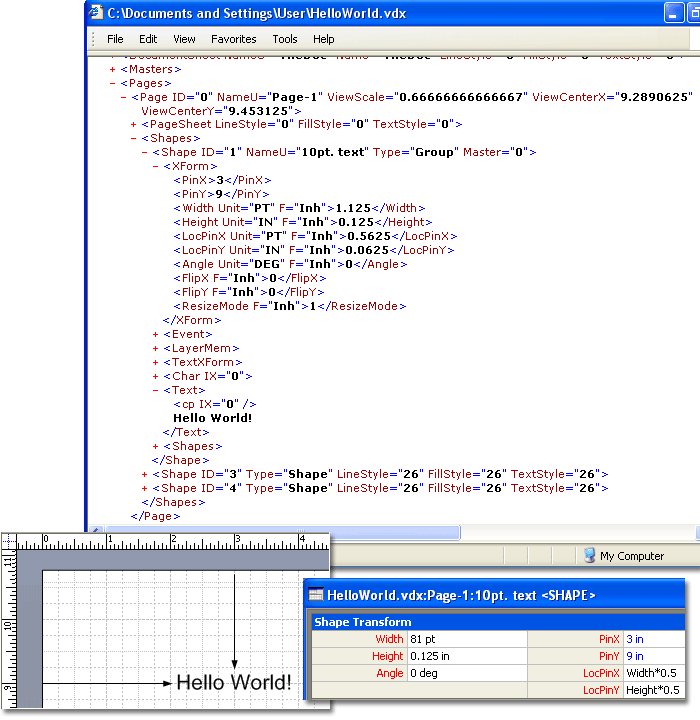

Extracting data from various container-level elements is relatively straightforward. For example, the following illustration shows a Visio drawing that contains two arrows and the text "Hello world!", the corresponding Shape Transform section in the ShapeSheet window, and an excerpt from the resulting .vdx file.
DatadiagramML file format excerpt showing text position
The "Hello world!" text in the drawing is centered at X=3.0 inches and Y=9.0 inches. You can see these values in the drawing view on the rulers and in the PinX and PinY cells. You can also find these values in the XML tags for the PinX and PinY elements, and the text itself after the <Text> tag highlighted in bold by Microsoft Internet Explorer. The Internet Explorer window shows a portion of the XML data created by saving the drawing in DatadiagramML drawing file format (.vdx).
To view and edit the XML text of a DatadiagramML file, open a .vdx file in Notepad or in an XML editing tool.
Indents are disabled by default in .vdx files to reduce file size. To enable indents for DatadiagramML file output, see the section about white space in Round-tripping DatadiagramML Files.
To view a .vdx file in Internet Explorer (version 5.0 or later), change the file extension from ".vdx" to ".xml," and then open the file in Internet Explorer. However, you must change the file extension back to .vdx if you want to open the file again in Visio.
For complete information about traversing the DatadiagramML tag structure, see About the DatadiagramML Schema.
Validation of third-party DatadiagramML files
When you save a Visio document in XML file format, the first line in the XML document (<?xml version='1.0' encoding='utf-8' ?>) is a processing instruction that identifies the document as XML.
The next few lines contain the opening tag for the top-level DatadiagramML container, the VisioDocument element, and several attributes of the VisioDocument element, including two, key and start, which Visio uses to verify that the VDX document has not been modified outside of Visio since the last time it was saved in Visio. These attributes are only present in files that have been saved by Visio, and they can be thought of as a "stamp" of file integrity, allowing Visio to skip the time-consuming step of recalculating the values of all cell elements that contain formulas when you open the document in Visio. Files such as these that Visio has saved are called trusted files.
Third parties can also create and edit XML files outside of Visio that follow the DatadiagramML schema. These files are called untrusted files. If an untrusted file does not carry the stamp, or if the file carries a stamp that indicates the file has been modified outside of Visio, Visio checks that the XML is well-formed and valid, which can increase the time it takes to open an untrusted file. If you then save the file in Visio as a DatadiagramML document, the file will thereafter contain a stamp that indicates the document is a trusted file.
Note Visio will not load files that are not well-formed or that will not pass validation against the DatadiagramML schema.
For more details about working with untrusted files, see Loading Files that were Created or Edited Outside of Visio.
Opening a Visio document, saving it as a DatadiagramML document, and then reopening the DatadiagramML document shows that you can round-trip all the Visio data in the document. That is, no information is lost between the binary version and the DatadiagramML version of the document.
XML files that are created or edited outside of Visio, and then opened and resaved in Visio, do not necessarily appear identical, but the information should be close to identical. For example, white space may or may not be preserved (depending on the element), and some elements might get reordered (or added in some cases) in the file in a way that is preferred by Visio.
For more details about some of the DatadiagramML file differences that may occur in round-tripping, see Round-tripping DatadiagramML Files.
Including custom data within a DatadiagramML file
You can include custom XML data within your DatadiagramML file, provided the data contains well-formed XML that complies with the DatadiagramML schema and the internal rules of Visio.
You can embed custom XML in a DatadiagramML file in two ways:
At the document level, you can store XML data by using the SolutionXML element contained immediately within the VisioDocument element. At the cell level, you can store well-formed XML data in selected cells by using a string value within a SolutionXML element. You can then manipulate the XML data in your solution at run time by using Automation.
Beginning with Microsoft Office Visio 2003, you can test the validity of changes you make to SolutionXML elements without having to reopen the file in Visio by turning on the XMLValidateOnSave registry key.
For information about embedding and extracting solution-specific data placed in drawings, stencils, or templates by a third-party solution provider, and about enabling validation on save, see Embedding Custom XML in a DatadiagramML File.
Working with Microsoft Visio 2002 XML files in Microsoft Office Visio 2003
You can open a .vdx file created in Microsoft Visio 2002 in Microsoft Office Visio 2003. Visio will automatically convert the file to the newer format. However, once you make changes to the file and save it in Microsoft Office Visio 2003, you will no longer be able to open the file in Microsoft Visio 2002. Nor can you save the modified file in Microsoft Visio 2002 .vdx format from Microsoft Office Visio 2003.
To be able to open such a file in Microsoft Visio 2002 once again, save it in .vsd format. Then you can open it in Microsoft Visio 2002 and, if you wish, save it again in .vdx file format.
